The Schlage / Genetec Security Center Wi-Fi solution utilizes a Middleware server, which acts as a conduit for information passed between the Genetec system and the Wi-Fi locks. This integration permits the installation of battery powered NDEB or LEB locks to periodically contact the system via the Middleware (up to 3X per day) to obtain access levels, administrate / revoke credentials, and report audits; high priority audits are reported immediately (e.g. Door Forced Open, Tamper). Users can manage access via the Security Center. All communication is encrypted
The Schlage NDEB and LEB are ideal for office and suite entries, higher education student housing, conference rooms and door locations that are often difficult or expensive to route wires to a wall mount reader. The locks are weather resistant, and the lever handing is field reversible. The Schlage NDEB and LEB offer up to 2 years of battery life.
Credential compatibility* includes (but is not limited to):
- NFC mobile credentials in Apple Wallet® and Google Wallet™
- Schlage’s MIFARE DESFire EV3 Series credentials
- HID’s iClass, iClass SE and SEOS credentials
- Traditional proximity low frequency credentials
*Consult with your Genetec or Allegion sales representative to correctly configure your model to support the preferred credential.
Jump to
Industry
- Airports
- Banking
- Cannabis
- Cities
- Corporate Campuses
- Data Centers
- Education
- Energy Utilities
- Financial Institutions
- Food Cosmetics Chemicals Pharma
- Healthcare
- Manufacturing Wholesale
- Retail
- Sports Entertainment
Availability
- Americas
Features and benefits
Property managers can leverage their existing Wi-Fi infrastructure for access control. The ENGAGE Middleware solution lowers the total cost of installation by eliminating additional hardware, such as PIMS or Gateways.
This solution provides native management experience for Genetec Security Center users.

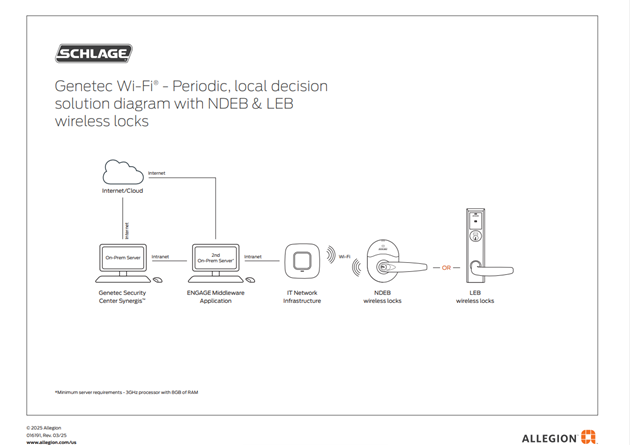

Solution architecture
The ENGAGE Middleware software is installed and will run on a separate, on-premises (usually VM or HyperV) server. A Plugin is installed on the Security Center server, configured are performed in Security Center to make a connection to the ENGAGE Middleware server.cA “virtual” Panel is created in the middleware that can manage an unlimited number of locks (readers).
Feature locations:
Security Center:
- Setup cardholders and credentials
- Configure and assign different access levels and schedules, leveraging Schlage intelligent wireless locks
- Set access control attributes on badges (status, activation / deactivation date, extended strike/held times)
- Support for deadbolt override feature
- View events and alarms from Schlage intelligent locks
- Priority alarms reported in real-time
- Routine events reported during periodic sync
- Configuration of lock settings
- Configuration of Card Format
- Access Mode Schedules (Auto-unlock, Exceptions)
- Configure periodic sync interval
ENGAGE™ Wireless Lock Server:
- Send updated badge information, access levels, and schedules to locks (from Security Center)
Receive audits, events, and configuration information from locks (pushed to Security Center)
